Viewing Raster* properties

A number of functions are available to view the properties of a raster object. Most of these are read-only.

library(sf)
library(raster)
yose_bnd_ll <- sf::st_read(dsn="./data", layer="yose_boundary")
srtm_fn <- "./data/srtm_13_05.tif"
srtm_13_05_rst <- raster(srtm_fn)
yose_dem_ll <- raster::crop(srtm_13_05_rst, yose_bnd_ll)

## Reading layer `yose_boundary' from data source `D:\Workshops\R-Spatial\rspatial_mod\outputs\rspatial_data\data' using driver `ESRI Shapefile'
## Simple feature collection with 1 feature and 11 fields
## Geometry type: POLYGON
## Dimension:     XY
## Bounding box:  xmin: -119.8864 ymin: 37.4947 xmax: -119.1964 ymax: 38.18515
## Geodetic CRS:  North_American_Datum_1983

Raster Data Manipulations

Common raster manipulations include:

Projecting Rasters

Like sf objects, projection info in rasters is saved. You can view (or assign) a CRS object to a raster object using proj4string().

Projecting rasters is a little more complicated than vector features because of the additional spatial structure implicit in the grid. If you blindly apply a projection equation to cell coordinates, you’ll very likely wind up with non-square cells. That’s a problem if your goal is to combine the projected raster with other rastesrs for analysis or visualization, because the cells may not align properly.

To help with this, the projectRaster() function has some additional arguments:

If you’re trying to project a raster to match another one, you can simply enter the existing one as the **to** argument and R will match the cell size and extent:

Alternately you can also manually specify the CRS and the resolution with **res**:

Resampling Method

method - determines how the projected cell values will be computed. Very important to pay attention:

Example: Project Elevation Data from Lat-Long to UTM

Project the Yosemite DEM to UTM:

utm11n_nad83_epsg <- 26911
utm11n_nad83_proj4 <- "+init=epsg:26911"

## Project the clipped DEM to UTM
yose_dem_utm <- projectRaster(yose_dem_ll, crs=CRS(utm11n_nad83_proj4), res=90, method="bilinear")
yose_dem_utm

## class      : RasterLayer
## dimensions : 880, 708, 623040  (nrow, ncol, ncell)
## resolution : 90, 90  (x, y)
## extent     : 244387.5, 308107.5, 4151576, 4230776  (xmin, xmax, ymin, ymax)
## crs        : +proj=utm +zone=11 +datum=NAD83 +units=m +no_defs
## source     : memory
## names      : srtm_13_05
## values     : 440.8224, 3958.44  (min, max)

## Project the park boundary to UTM so we can overlay it on the projected DEM
yose_bnd_utm <- yose_bnd_ll %>% st_transform(utm11n_nad83_epsg)

## Plot the DEM

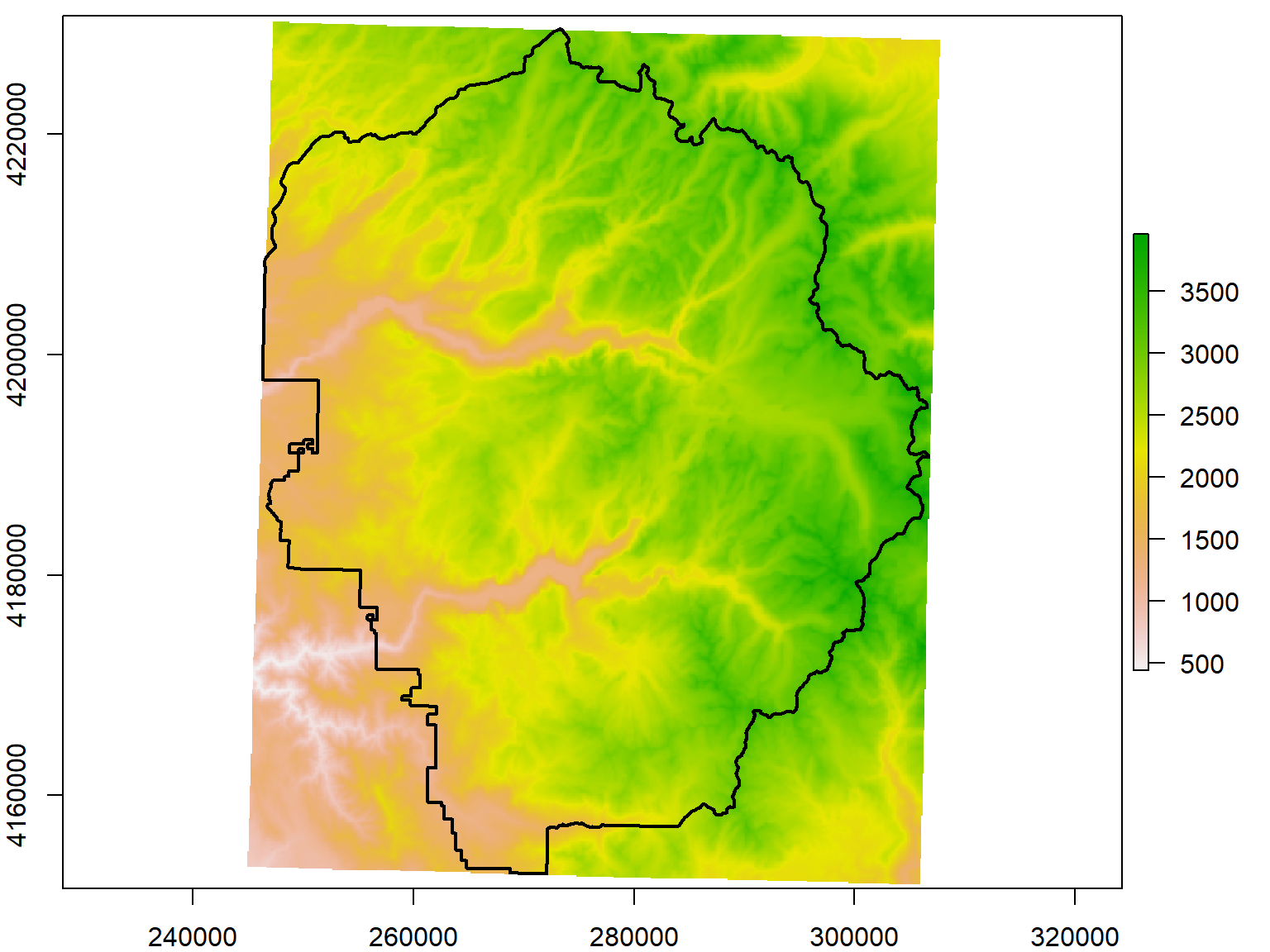

plot(yose_dem_utm)
plot(st_geometry(yose_bnd_utm), col=NA, border="black", lwd=2, add=TRUE)

BONUS: Working with Extent Objects

The extent of a Raster is simply the rectangular area it reflects, like a bounding box. Extent objects can saved on their own and used for cropping, creating new raster objects, etc. You can increase an Extent object on all sides using raster::extend(), and even project it with raster::projectExtent(). The former offers an easy way to enlarge the area is cropped to have a little buffer on all sides.

## Project the SRTM tile
srtm_13_05_utm <- projectRaster(srtm_13_05_rst, crs=CRS("+init=epsg:26911"), res=90, method="bilinear")

## Compute an extent that goes 1 km beyond the boundaries of the park
yose_big_ext <- extend(extent(yose_dem_utm), 1000)

## Crop the projected SRTM tile
yose_dem_ext <- raster::crop(srtm_13_05_utm, yose_big_ext)

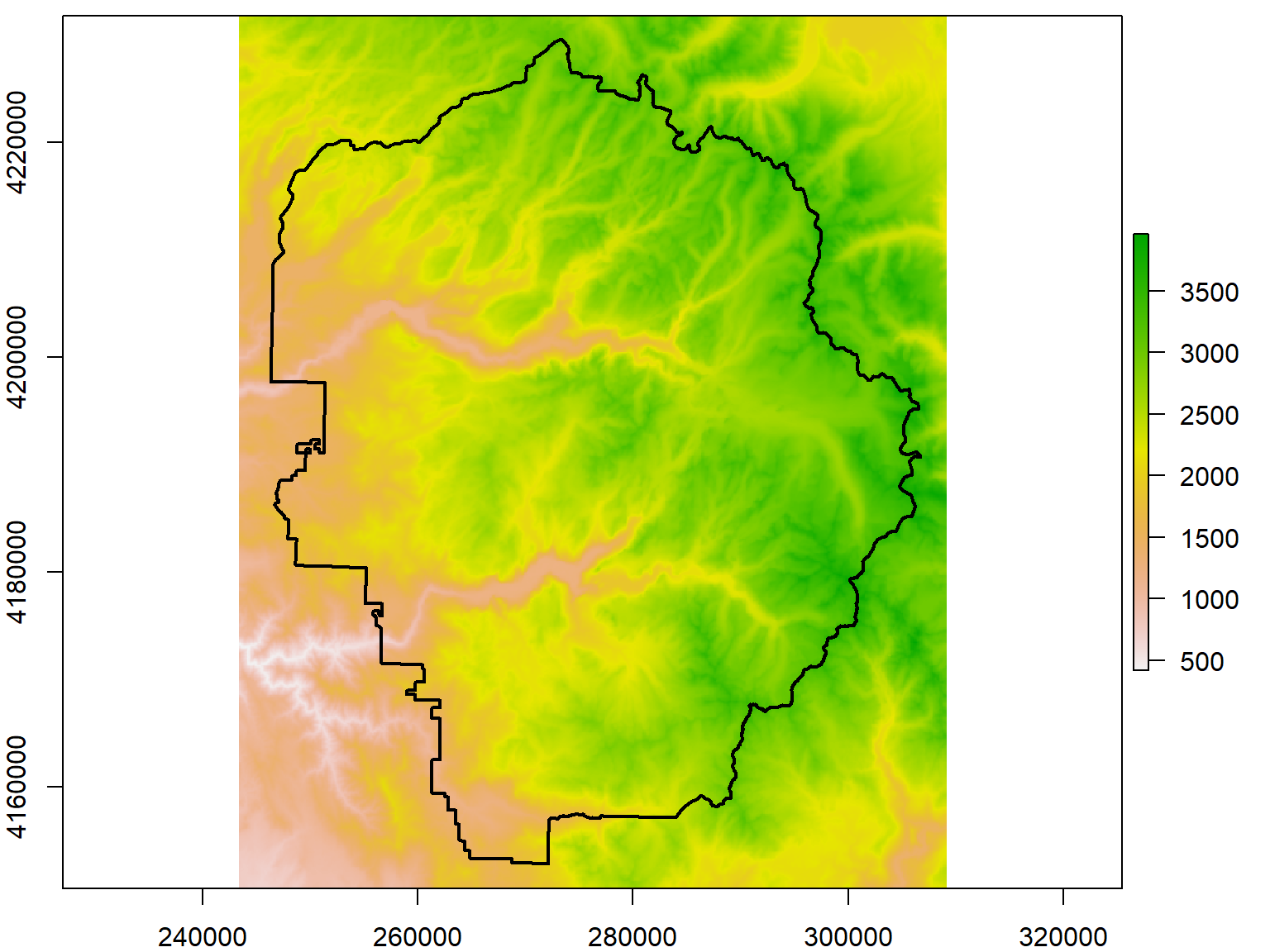

## Plot to see if it worked
plot(yose_dem_ext)
plot(yose_bnd_utm %>% st_geometry(), col=NA, border="black", lwd=2, add=TRUE)

Masking

Masking is similar to cropping, but rather than chopping off rows and columns, pixels that fall outside the study area are simply set to NA. This allows you to perform raster analyses for irregular areas, because most statistical functions ignore NA values, and R will generally make NA pixels transparent when plotting.

To mask a raster, use raster::mask(*rst*, *mask*) where rst is your raster and mask is an another Raster or Spatial object (e.g., polygon).

Mask Example

Mask the Yosemite DEM by the park boundary:

## Mask the Yosemite DEM to the park boundary
yose_dem_msk <- yose_dem_utm %>% mask(yose_bnd_utm)

## Plot to see if it worked
plot(yose_dem_msk)
plot(yose_bnd_utm %>% st_geometry(), col=NA, border="black", lwd=2, add=TRUE)

Multi-Layer Rasters

Stacking Rasters

RasterStack and RasterBrick objects store multi-layer rasters. When you import a multi-layer raster from disk using the raster::brick() function, you get a RasterBrick object. Sometimes your source data come from different files. In this case, feed the filenames into the raster::stack() function.

Working with Multi-Layer Rasters

Most functions like cropping and masking will work on all layers combined.

You can grab a single layer the same way you would a list, such as big_stack[[1]] or big_stack$*layer_name*. To pull out multiple layers, use raster::subset().

Add and delete layers with raster::addLayer() and raster::dropLayer().

See also: Remote Sensing Image Analysis by Robert Hijmans

Changing the Resolution (Pixel Size)

You may want to change the pixel size to reduce the amount of data and therefore computation time required. Another common case is where you need to match the resolution of two rasters so you can do pixel-by-pixel computations.

The raster package has two functions to change pixel size:

Use aggregate() when you want to increase pixel size by a numeric factor, for example by 2 (twice as big). The fun agrument allows you to specify the function uses to summarize values (e.g., take the mean). resample() will match the pixel size of another raster. Remeber with discrete or categorical data, use method='ngb' so the cell values in the output will remain integers.

Example: Resample a DEM with aggregate()

Let’s reduce the resolution of the DEM by a factor of 10. Note the discernably larger pixel sizes.

## Resample the DEM
yose_dem1k_msk <- raster::aggregate(yose_dem_msk, fact=10)

## View the new resolution, num rows and columns
yose_dem1k_msk

## Plot
plot(yose_dem1k_msk)
plot(yose_bnd_utm %>% st_geometry(), col=NA, border="black", lwd=2, add=TRUE)

## class      : RasterLayer
## dimensions : 88, 71, 6248  (nrow, ncol, ncell)
## resolution : 900, 900  (x, y)
## extent     : 244387.5, 308287.5, 4151576, 4230776  (xmin, xmax, ymin, ymax)
## crs        : +proj=utm +zone=11 +datum=NAD83 +units=m +no_defs
## source     : memory
## names      : srtm_13_05
## values     : 795.2238, 3798.272  (min, max)

Slope, Aspect, and Hill Shade

A slope surface is a raster whose cell values represent the slope of the terrain, while an aspect raster records the direction of the compass is uphill. Both of these can be created from a DEM with the raster package’s terrain() function.

You can feed slope and aspect rasters into the hillShade() function to generate a raster the simulates shading.

## Compute the slope, aspect, and hillshade
yose_slope <- raster::terrain(yose_dem_msk, opt="slope")
yose_aspect <- raster::terrain(yose_dem_msk, opt="aspect")
yose_hillshade <- raster::hillShade(yose_slope, yose_aspect, 40, 270)

## Plot results
plot(yose_hillshade, col=grey(0:100/100), legend=FALSE)
plot(yose_bnd_utm %>% st_geometry(), col=NA, border="black", lwd=2, add=TRUE)

Rasterize Vector Features

Occassionally you have to convert vector features to a raster format for an analysis. Points, lines and polygons can all be converted to raster with the rasterize() function.

Details you have to think about are what cell size to use, how the values of the cells should be computed, and what to do when two or more features overlap or fall in the same cell.

Typically, you use another raster (i.e., the one you’re trying to match) as the ‘template’ for the rasterized features, passed as rast (must have the same CRS).

The field argument has a number of options for the cell output values, including a constant value, or the name of a column in the vector attribute table.

Example: Rasterize watersheds

Rasterize the Yosemite watersheds, using the DEM as the raster template.

First load the watersheds, and project them to match the raster.

## Import watersheds from a geopackage
gpkg_watershd_fn <- "./data/yose_watersheds.gpkg"
yose_watersheds_utm <- sf::st_read(gpkg_watershd_fn, layer="calw221") %>%
  st_transform(utm11n_nad83_epsg)
plot(yose_watersheds_utm %>% st_geometry(), axes=TRUE)

## Get the bigger watersheds by group on the HU column
yose_hu_utm <- yose_watersheds_utm %>%
  group_by(HU) %>%
  summarise(HUNAME = first(HUNAME),
            NUM_WATERSHEDS = n())
plot(yose_hu_utm %>% st_geometry(), axes=TRUE)

## Reading layer `calw221' from data source `D:\Workshops\R-Spatial\rspatial_mod\outputs\rspatial_data\data\yose_watersheds.gpkg' using driver `GPKG'
## Simple feature collection with 127 features and 38 fields
## Geometry type: POLYGON
## Dimension:     XY
## Bounding box:  xmin: 1383.82 ymin: -61442.93 xmax: 81596.71 ymax: 26405.66
## Projected CRS: unnamed

Next, we rasterize!

## Rasterize the watershed boundaries, using the DEM as the template.
## By omitting the field argument, the cell values will be the index (row number) of the overlapping polygon
yose_hu_rst <- raster::rasterize(yose_hu_utm, yose_dem_msk)

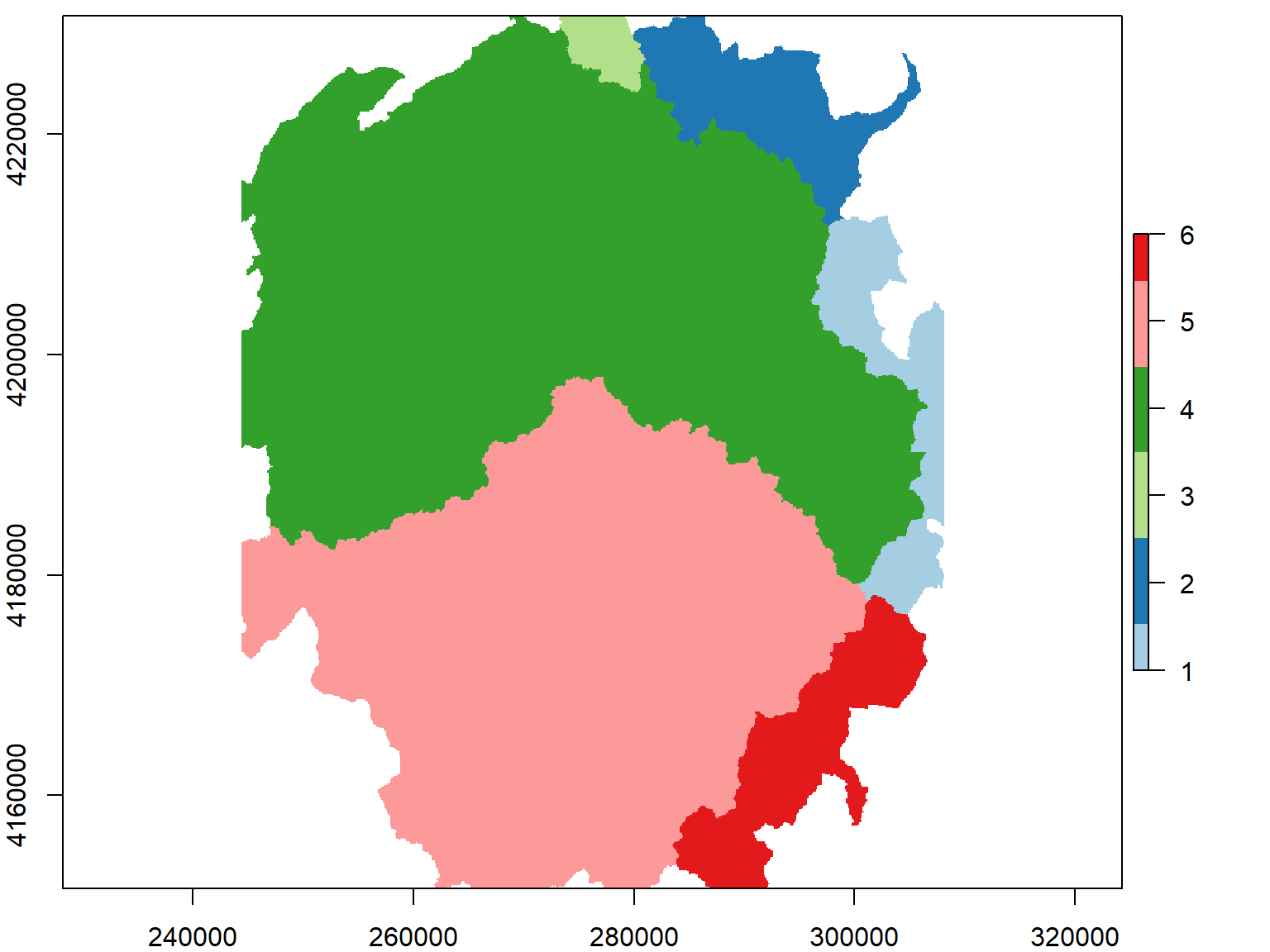

## Plot
colors_qual_paired <- RColorBrewer::brewer.pal(nrow(yose_hu_utm), "Paired")
plot(yose_hu_rst, col=colors_qual_paired)

Create a Distance Surface

The distance() function will generate a new raster whose cell values represent the distance to the nearest feature.

To create a distance surface that shows the distance to the nearest trail, we:

First, import the trails:

## Import the trails
gdb_fn <- "./data/yose_trails.gdb"
yose_trails <- st_read(gdb_fn, layer="Trails")

Next we rasterize the trails, using the DEM as a template.

## Rasterize the trails, using the DEM as a template for the output raster. Cells that contain
## a trail will be '1', and everything else will be NA.
## Note: this can take > 5 minutes. If you don't want to wait run instead:
## yose_trails_rst <- raster("./data/~yose_trails.tif")
yose_trails_rst <- raster::rasterize(yose_trails, yose_dem_utm, field = 1)

## Plot it
plot(yose_trails_rst, col = "red", legend = FALSE, main = "Yosemite Trails Rasterized")

## View how many cells have a trail
freq(yose_trails_rst)

##      value  count
## [1,]     1  20162
## [2,]    NA 602878

Finally we compute the distance surface:

## Compute the distance surface. Note this can take up to a minute.
yose_dist2trails_rst <- raster::distance(yose_trails_rst)

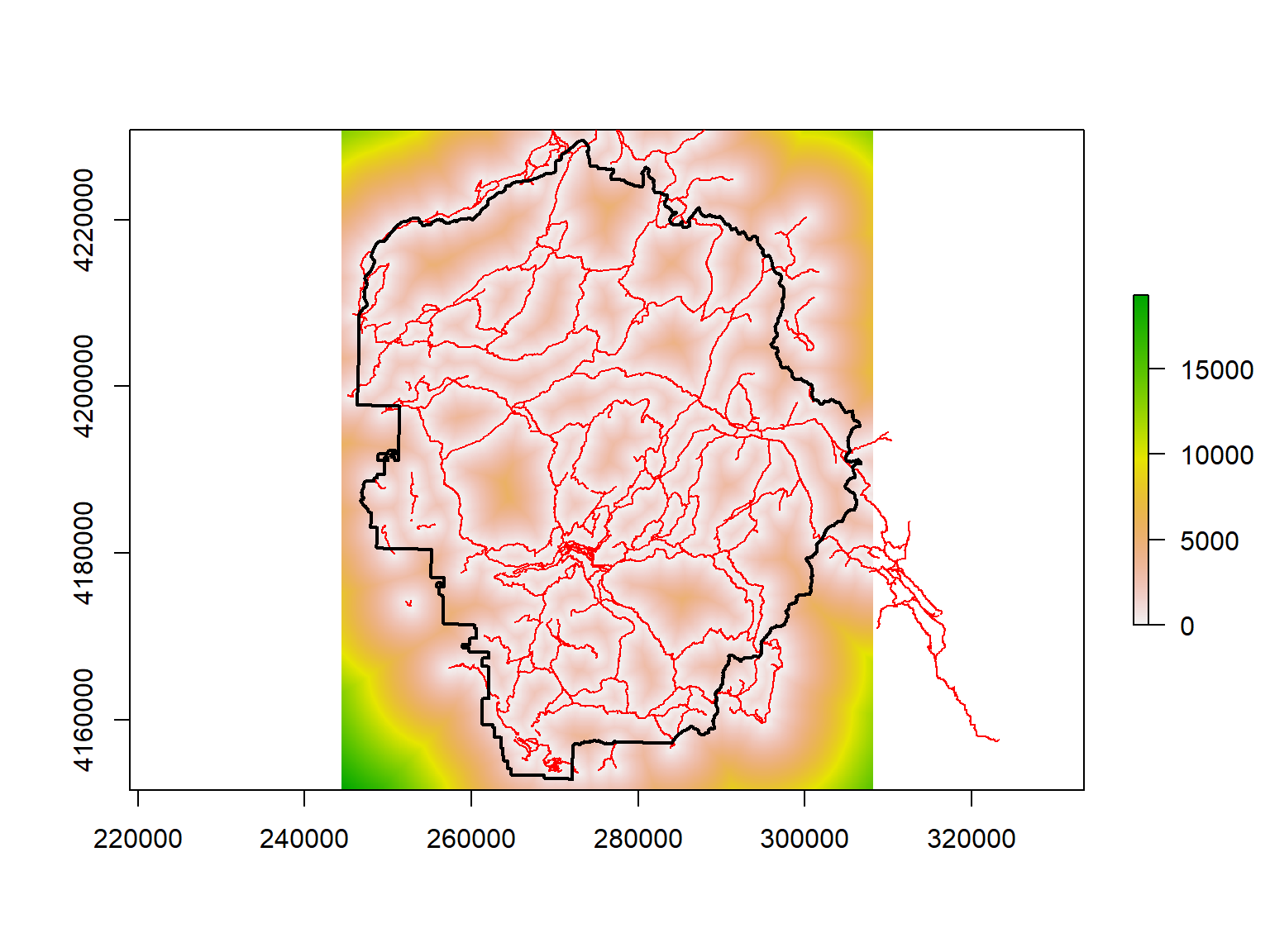

## Plot
plot(yose_dist2trails_rst)
plot(yose_trails %>% st_geometry(), col="red", add=TRUE)
plot(yose_bnd_utm %>%  st_geometry(), col=NA, border="black", lwd=2, add=TRUE)

Working with Categorical Rasters

We just created a categorical raster where the cell values are integers that refer to a category. We can see the frequency of cell values as a matrix with freq().

freq(yose_hu_rst)

##      value  count
## [1,]     1  20686
## [2,]     2  23325
## [3,]     3   4342
## [4,]     4 236791
## [5,]     5 191674
## [6,]     6  25691
## [7,]    NA 120531

To save the category labels as part of our raster, it needs a “Raster Attribute Table” (RAT). We can see if our raster has one by entering it at the console:

yose_hu_rst

## class      : RasterLayer
## dimensions : 880, 708, 623040  (nrow, ncol, ncell)
## resolution : 90, 90  (x, y)
## extent     : 244387.5, 308107.5, 4151576, 4230776  (xmin, xmax, ymin, ymax)
## crs        : +proj=utm +zone=11 +datum=NAD83 +units=m +no_defs
## source     : memory
## names      : layer
## values     : 1, 6  (min, max)
## attributes :
##        ID HU            HUNAME NUM_WATERSHEDS
##  from:  1  1              MONO              7
##   to :  6 40 SAN JOAQUIN RIVER              6

We can grab the RAT with levels().

levels(yose_hu_rst)[[1]]

##   ID HU            HUNAME NUM_WATERSHEDS
## 1  1  1              MONO              7
## 2  2 30 EAST WALKER RIVER              5
## 3  3 31 WEST WALKER RIVER              2
## 4  4 36    TUOLUMNE RIVER             60
## 5  5 37      MERCED RIVER             47
## 6  6 40 SAN JOAQUIN RIVER              6

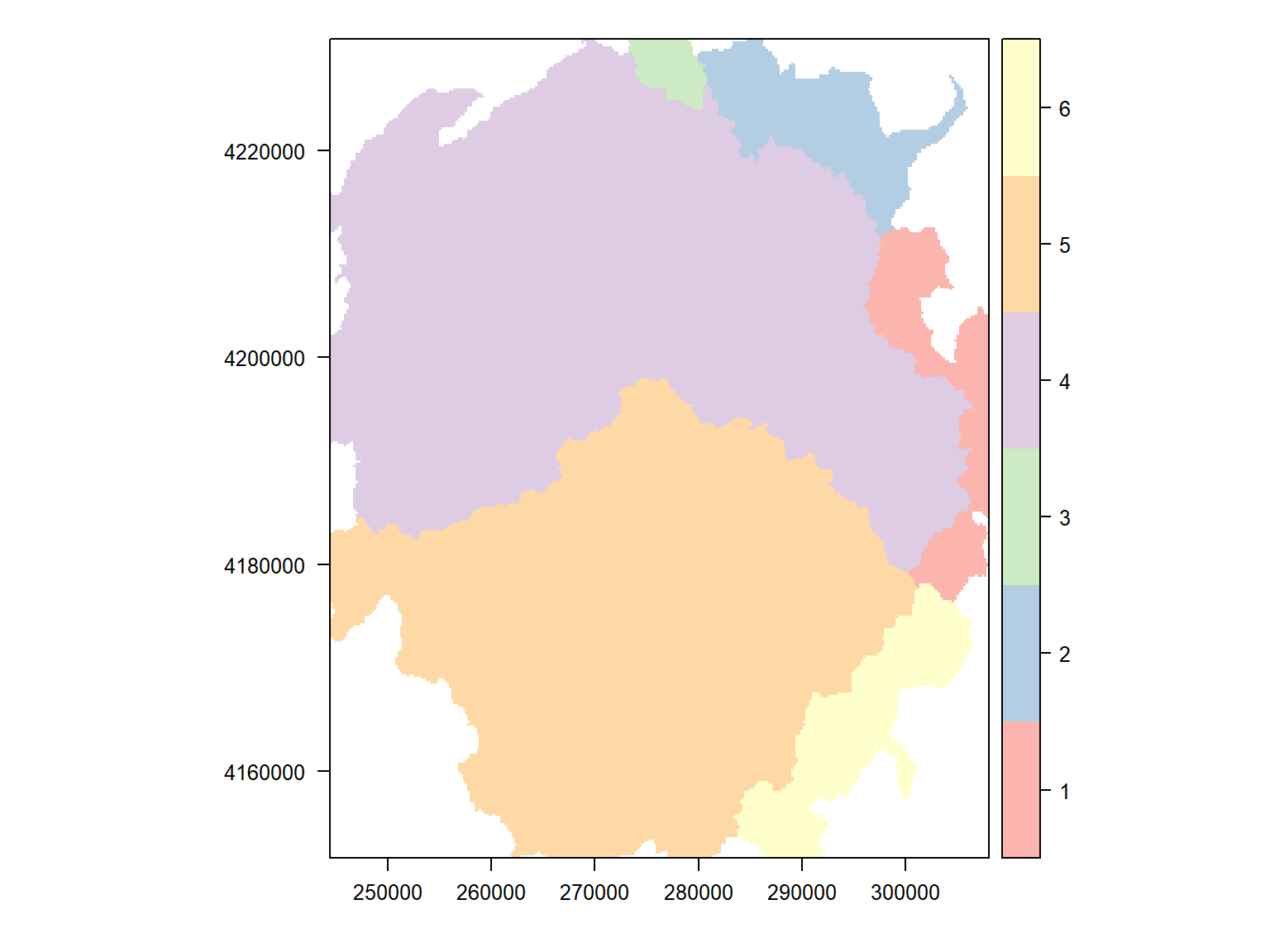

To plot the raster with the watershed names in the legend, we have to turn to the rasterVis package which has the levelplot() function. We also need to generate a set of random colors, and tell it which column from the attriute table to show in the legend.

library(rasterVis)

colors_qual_pastel1 <- RColorBrewer::brewer.pal(nrow(levels(yose_hu_rst)[[1]]), "Pastel1")

## Make the plot with levelplot
rasterVis::levelplot(yose_hu_rst, colorkey=list(height=1), col.regions=colors_qual_pastel1, att="HUNAME", xlab="", ylab="")

Working with Cell Values

We’ve already seen you can visualize the distribution of cell values with the hist() function.

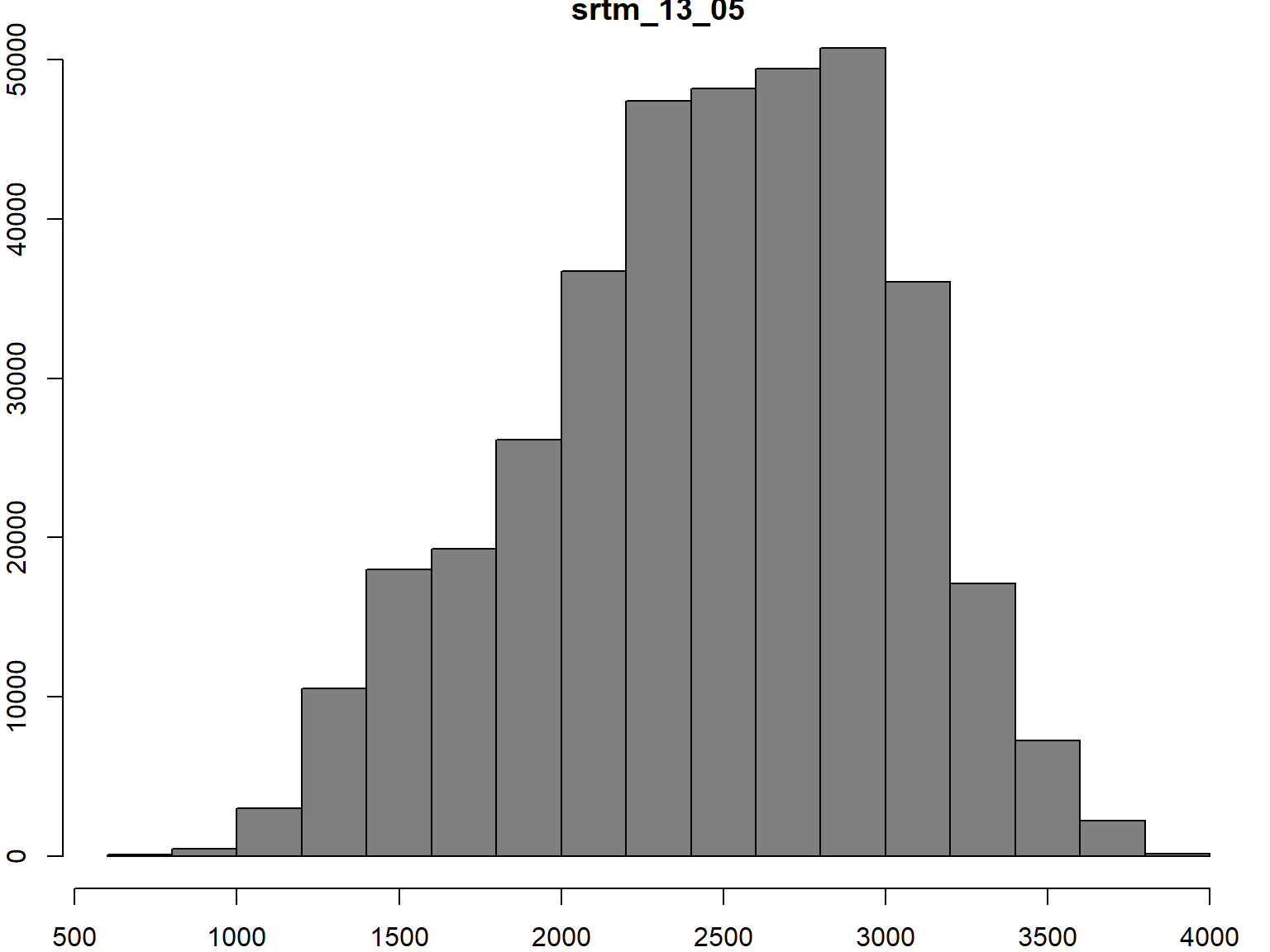

## Create a histogram of the pixel values
hist(yose_dem_msk, col="grey50")

There are couple of ways to get cell values so you can analyze them or feed them into a statistical model.

Editing Cell Values

Other common manipulations of raster data leave the spatial structure intact, but modify the cell values. For example you may want to ‘clip’ the values so that all values below a certain threshhold are changed to ‘0’. Another example would be a linear stretch for better visualization.

To both read and write (edit) cell values, you can use square brackets. Like data frames, you can add an expression for the rows and columns to work with.

yose_dem_msk[500:501, 450:451, drop=FALSE]

## class      : RasterLayer
## dimensions : 2, 2, 4  (nrow, ncol, ncell)
## resolution : 90, 90  (x, y)
## extent     : 284797.5, 284977.5, 4185686, 4185866  (xmin, xmax, ymin, ymax)
## crs        : +proj=utm +zone=11 +datum=NAD83 +units=m +no_defs
## source     : memory
## names      : layer
## values     : 2978.858, 3000.158  (min, max)

Example: Zero-out small values

In the following example, we identify pixel values that are below a threshhold, and then set them to 0.

## Make copy of the DEM
yose_dem_msk_copy <- yose_dem_msk

## Get the values (not a copy)
dem_vals <- getValues(yose_dem_msk_copy)

## Get a logical vectors of the values less than 1500 (meters)
small_vals <- (dem_vals < 1500)   ## Create a Boolean vector
table(small_vals)

## Change the value of those smallish values to 0
yose_dem_msk_copy[small_vals] <- 0

## small_vals
##  FALSE   TRUE
## 350387  22409

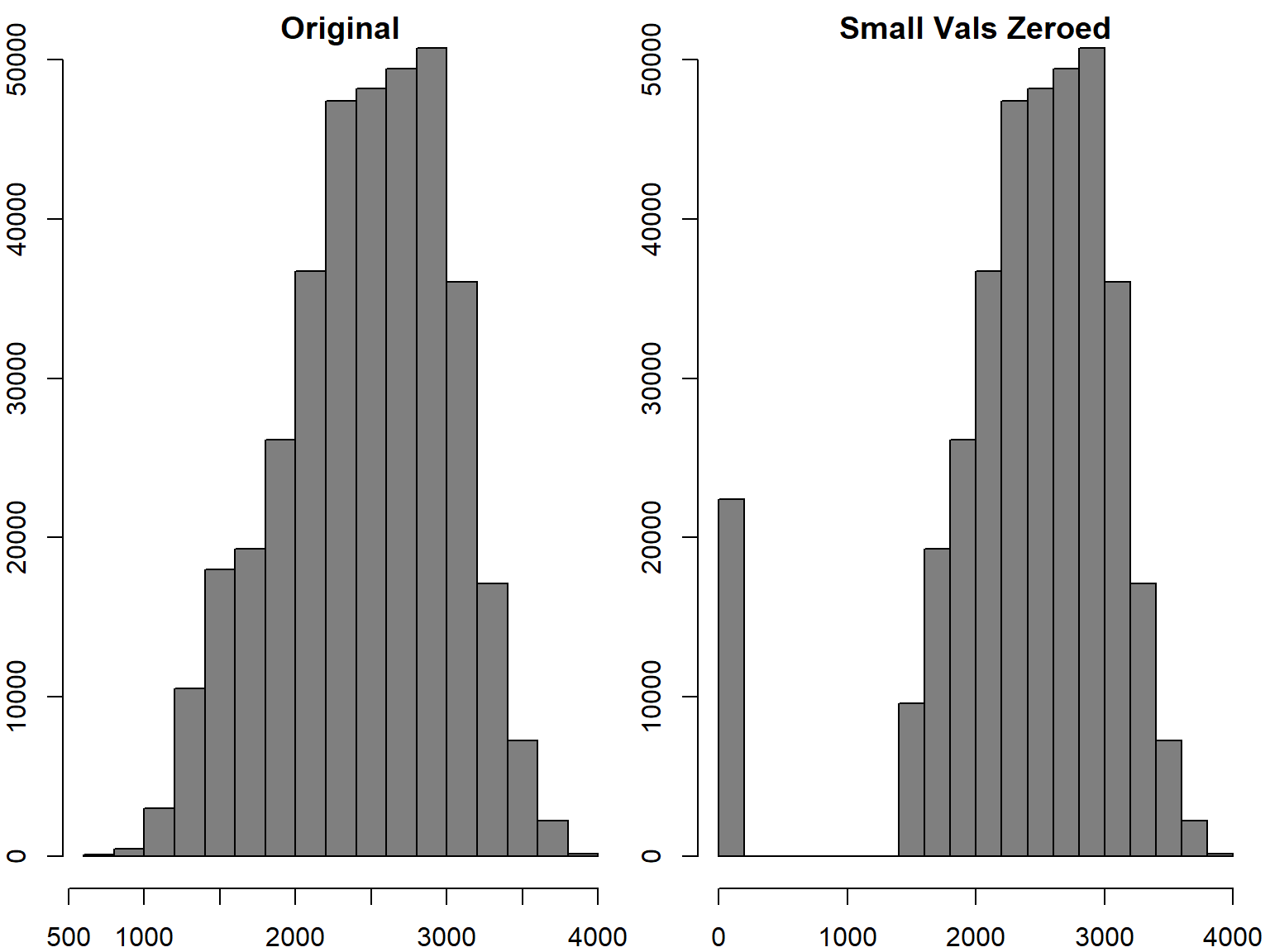

Compare results:

par(mfrow=c(1,2))
x <- hist(yose_dem_msk, col="grey50", main="\nOriginal")
hist(yose_dem_msk_copy, col="grey50", main="\nSmall Vals Zeroed")

## Number of cells that have low elevation
sum(small_vals, na.rm = TRUE)

## Area of one cell
prod(res(yose_dem_msk))

## Total area of low elevatino areas
prod(res(yose_dem_msk)) * sum(small_vals, na.rm = TRUE)

## [1] 22409
## [1] 8100
## [1] 181512900

Reclassify

Reclassifying changes groups of cell values to other values all at once. For example, you could change all cell values between 1 and 10 to become 1, all values between 11 and 15 become 2, etc. We can do this with:

The key to reclassify() is the rcl argument, which is a 3-column matrix with columns for the lower bound, upper bound, and new value for each group.

Example: Reclassify slopes into Low, Medium, and High

Earlier we computed the slope of the Yosemite DEM. Let’s look at that distribution:

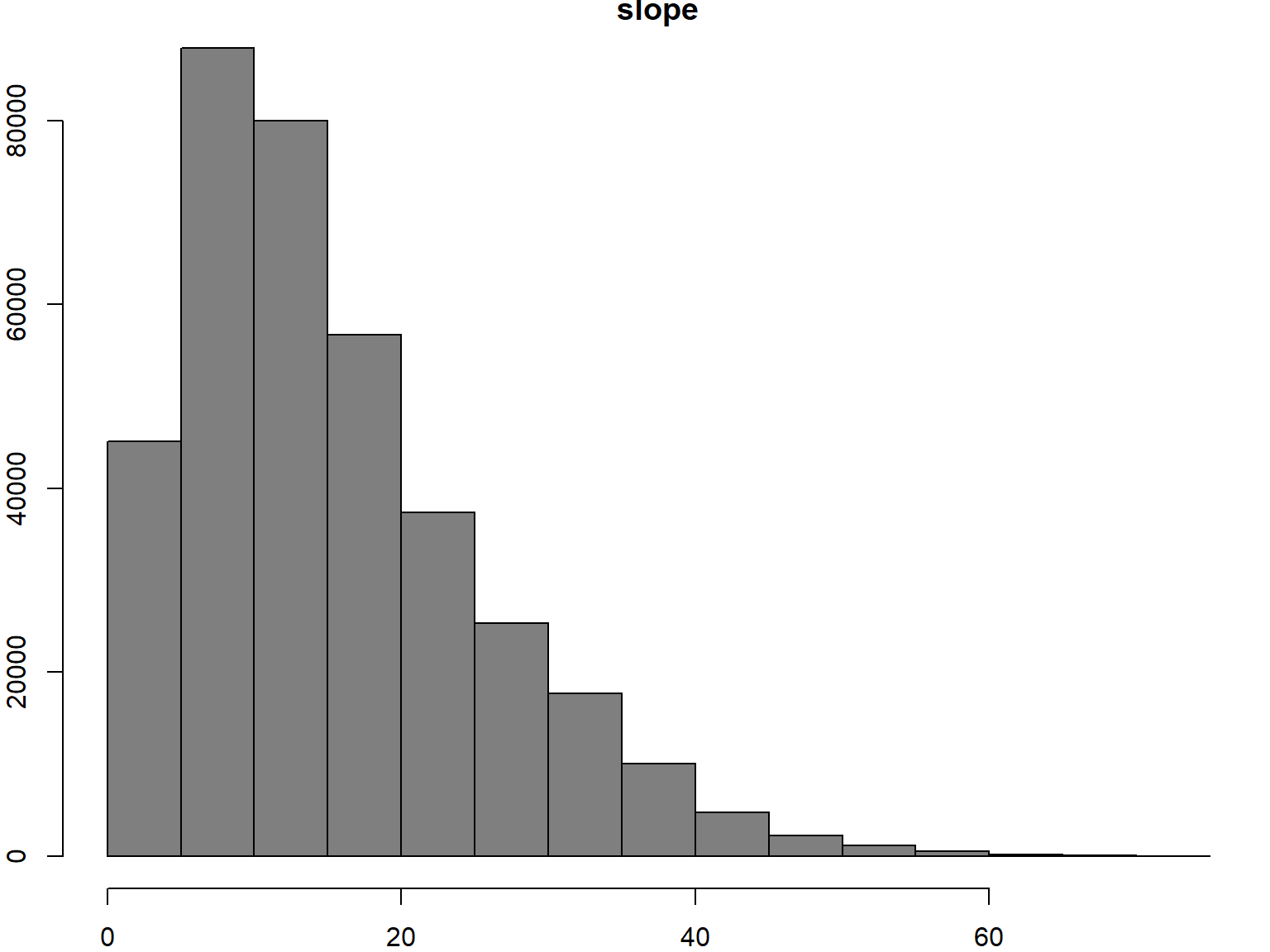

## Plot the distribution of slope values
hist(yose_slope, col="gray50", breaks=20)

## Slope is measured in RADIANS. To convert to degrees we multiply times 180 / pi
hist(yose_slope * 180 / pi, col="gray50", breaks=20)

Step 1. Create the reclassification matrix. The first and second columns should define the range of input values, and the third column should be the new value in the output. Rows should be mutually exclusive.

We’ll bin the slopes as follows:

## Create a reclassification matrix using degrees (more intuitive)
rcl_mat_deg <- matrix(c(0,15,1,15,30,2,30,90,3), ncol=3, byrow=TRUE)
rcl_mat_deg

## Convert the first two columns from degrees to radians
rcl_mat_rad <- rcl_mat_deg
rcl_mat_rad[ ,1] <- rcl_mat_rad[ ,1] * pi / 180
rcl_mat_rad[ ,2] <- rcl_mat_rad[ ,2] * pi / 180
rcl_mat_rad

##      [,1] [,2] [,3]
## [1,]    0   15    1
## [2,]   15   30    2
## [3,]   30   90    3
##           [,1]      [,2] [,3]
## [1,] 0.0000000 0.2617994    1
## [2,] 0.2617994 0.5235988    2
## [3,] 0.5235988 1.5707963    3

Step 2. Apply the reclassifcation matrix:

## Apply the reclassification
yose_slope_lmh <- raster::reclassify(yose_slope, rcl_mat_rad)
yose_slope_lmh
freq(yose_slope_lmh)

## class      : RasterLayer
## dimensions : 880, 708, 623040  (nrow, ncol, ncell)
## resolution : 90, 90  (x, y)
## extent     : 244387.5, 308107.5, 4151576, 4230776  (xmin, xmax, ymin, ymax)
## crs        : +proj=utm +zone=11 +datum=NAD83 +units=m +no_defs
## source     : memory
## names      : slope
## values     : 0, 3  (min, max)
##
##      value  count
## [1,]     0    118
## [2,]     1 212901
## [3,]     2 119441
## [4,]     3  36464
## [5,]    NA 254116

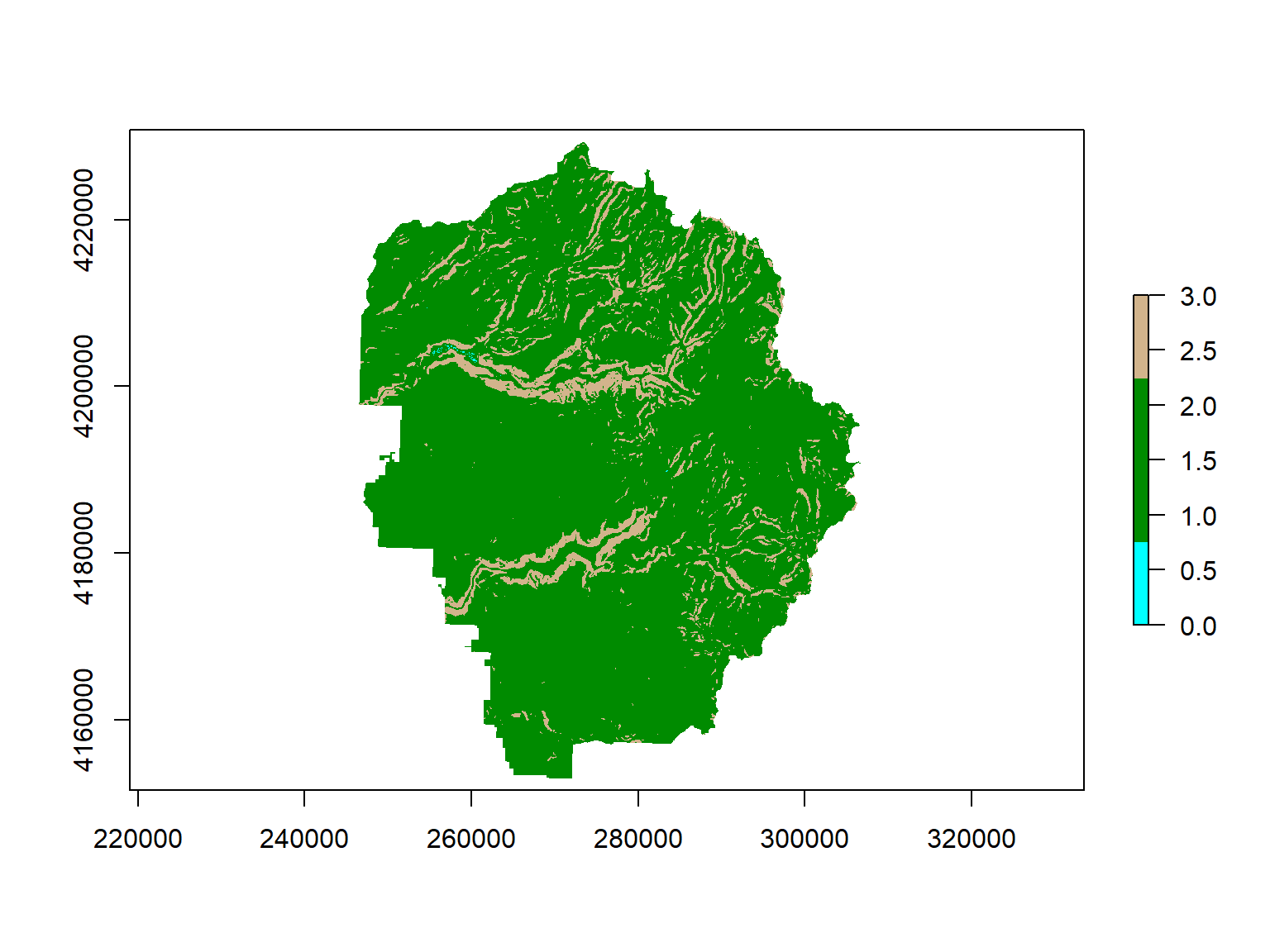

Step 3. View results:

plot(yose_slope_lmh, col=c("cyan", "green4", "tan"))

Dealing with Missing Data

Remotely sensed raster data often have pixels around the edges that are ‘missing’ values because the sensor didn’t record that area. Other times, an analyst may chose to manually ‘erase’ pixel values outside a non-rectangular study areas so those pixels are omitted from analyses.

There are a variety of conventions for flagging ‘missing’ data depending on the file format. Sometimes they are simply recorded as ‘0’, but that doesn’t always work because 0 can also mean no reflectance. Other common values for NoData are -9999 or -3.4e+38 for floating point rasters.

## View the digital number that represents missing data in the Landsat 8 image
rgdal::GDALinfo("./data/yose_l8_20180822_b2345.tif")

## rows        2555
## columns     2014
## bands       4
## lower left origin.x        246315
## lower left origin.y        4152885
## res.x       30
## res.y       30
## ysign       -1
## oblique.x   0
## oblique.y   0
## driver      GTiff
## projection  +proj=utm +zone=11 +datum=WGS84 +units=m +no_defs
## file        ./data/yose_l8_20180822_b2345.tif
## apparent band summary:
##   GDType hasNoDataValue NoDataValue blockSize1 blockSize2
## 1  Int16           TRUE      -32768          1       2014
## 2  Int16           TRUE      -32768          1       2014
## 3  Int16           TRUE      -32768          1       2014
## 4  Int16           TRUE      -32768          1       2014
## apparent band statistics:
##   Bmin  Bmax     Bmean      Bsd
## 1 7208 29840  9706.296 1516.573
## 2 6100 30960  9498.375 1919.447
## 3 5357 32595  9637.470 2457.824
## 4 4330 30481 14146.935 2610.648
## Metadata:
## AREA_OR_POINT=Area

Exporting a Raster

The raster package has its own export function, writeRaster(), that can export a raster to a number of common file formats including GeoTIFF, ENVI, IDRISI, netCDF, ERDAS, and others. You can of course also export using writeGDAL() from the rgdal package.

Example: Save a raster to disk as a TIF file

Save the masked DEM to to disk as a TIF file:

writeRaster(yose_dem_msk, filename="yose_dem.tif")

Summary

Today we saw how to:
